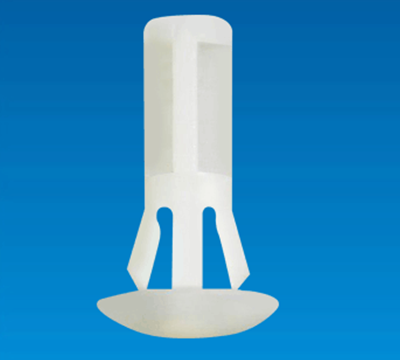

SPACER SUPPORT FCT-14
- Insert from the chassis underside.

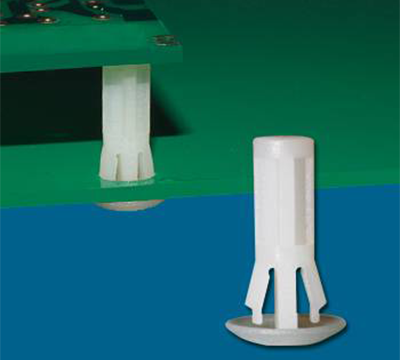

- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
SPACER SUPPORT FCT-14
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø5.5

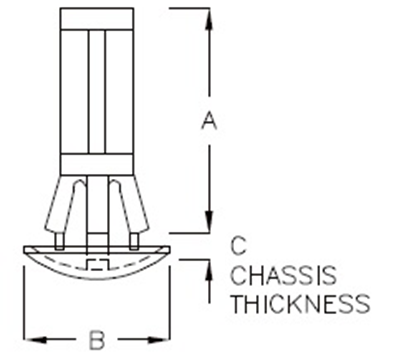

| PART NO | A | B | C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|
| FCT-14 | 14.0 | Ø9.8 | 1.0~2.0 | 1000 |
| FCT-19A | 19.0 | Ø10.0 | 0.8~1.6 | 1000 |
