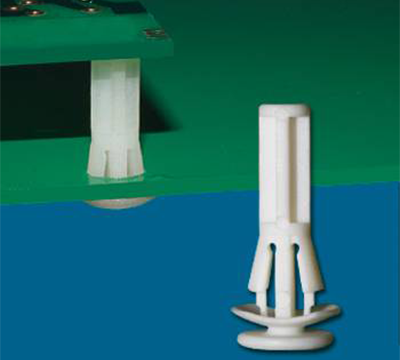

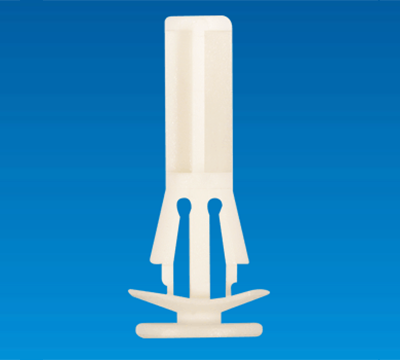

SPACER SUPPORT FFR-05
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mounted end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT FFR-05
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mounted end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø4.8

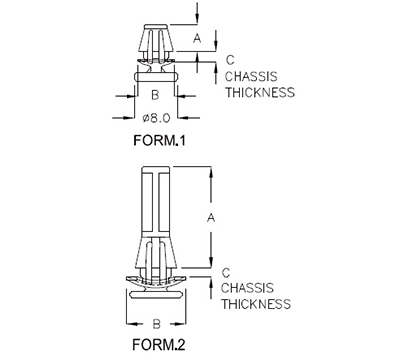

| PART NO | A | B | C CHASSIS THICKNESS |
FORM | PACKAGE |
|---|---|---|---|---|---|
| FFR-05 | 5.0 | Ø6.75 | 1.4~1.6 | 1 | 1000 |
| FFR-15H | 15.5 | Ø9.0 | 1.4~1.6 | 2 | 1000 |
