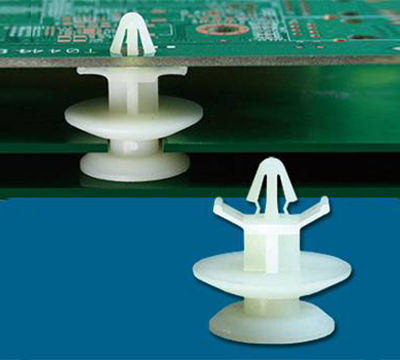

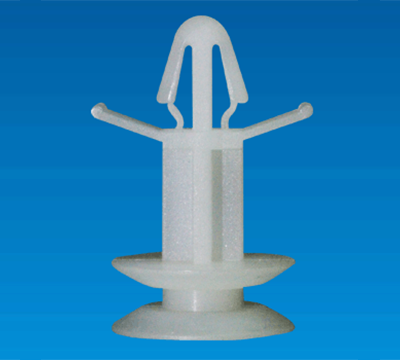

SPACER SUPPORT FOR M2 CARD LSD-4A
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT FOR M2 CARD LSD-4A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
-
COLOR: NATURAL

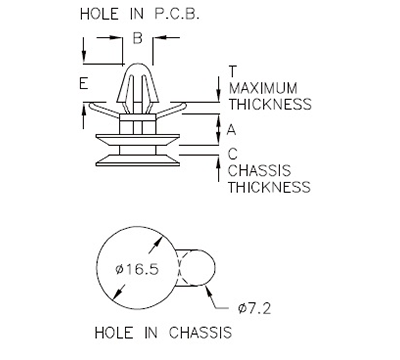

| PART NO | A | B | T MAXIMUM THICKNESS |
C CHASSIS THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|---|
| LSD-4A | 4.5 | Ø4.5 | 2.0 | 2.5 | 5.8 | 500 |
| LSD-6 | 6.0 | Ø6.0 | 1.6 | 1.8 | 7.6 | |
| LSD-9A | 9.5 | Ø4.5 | 1.6 | 1.8 | 5.8 | |
| LSD-9C | 8.6 | Ø6.0 | 1.6 | 1.8 | 7.6 | |
| LSD-13A | 13.3 | Ø6.0 | 1.6 | 1.8 | 7.6 |
