Components & Accessories

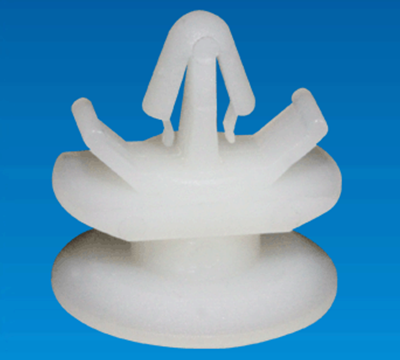

SPACER SUPPORT FOR M2 CARD LSD-8

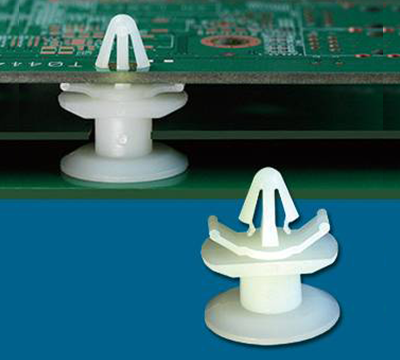

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT FOR M2 CARD LSD-8
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL]

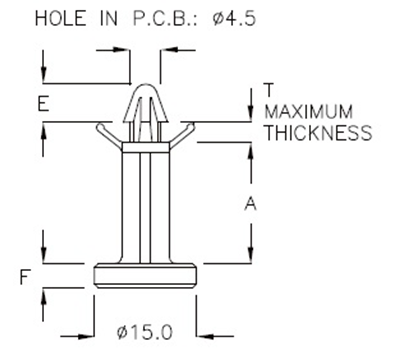

| PART NO | A | T MAXIMUM THICKNESS |
C CHASSIS THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| LSD-8 | 3.3 | 2.0 | 2.5 | 6.5 | 500 |
| LSD-8C | 3.2 | 2.0 | 5.0 | 6.5 | 500 |
