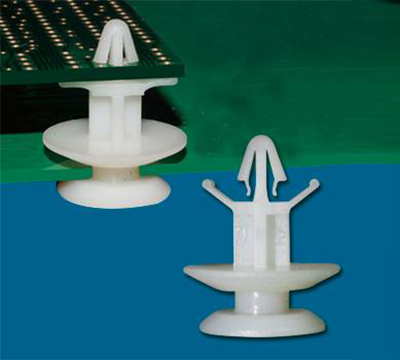

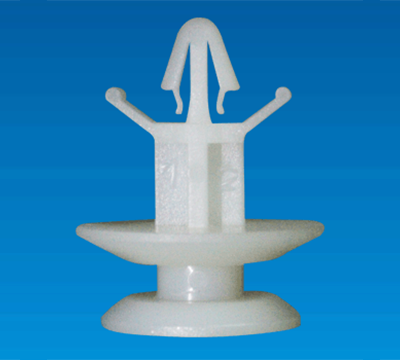

SPACER SUPPORT FOR M2 CARD LSD-9B
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT FOR M2 CARD LSD-9B
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL:NYLON66(UL)
- FLAME CLASS:94V-2
- COLOR:NATURAL

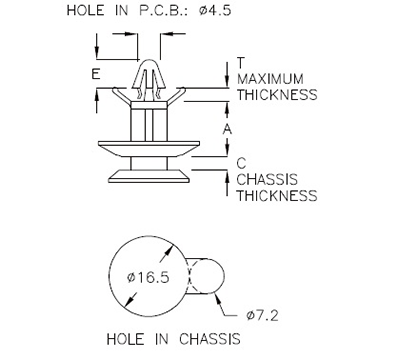

| PART NO | A | T MAXIMUM THICKNESS |
C CHASSIS THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| LSD-9B | 8.6 | 4.0 | 2.5 | 5.8 | 500 |
| LSD-11A | 11.1 | 2.0 | 2.5 | 5.8 | |
| LSD-12 | 12.1 | 1.6 | 2.5 | 5.8 | |
| LSD-12A | 12.1 | 2.0 | 2.5 | 5.8 | |
| LSD-14 | 14.0 | 1.6 | 2.5 | 5.8 |
