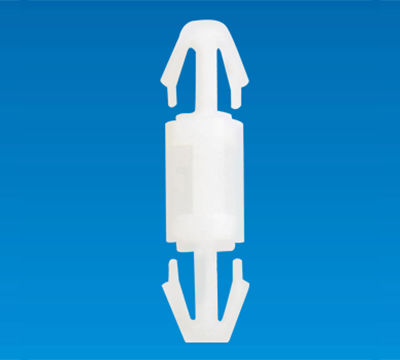

SPACER SUPPORT KCA-2M

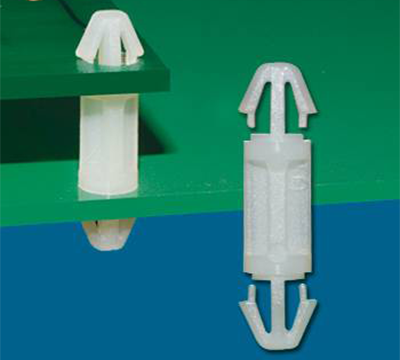

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
SPACER SUPPORT KCA-2M
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

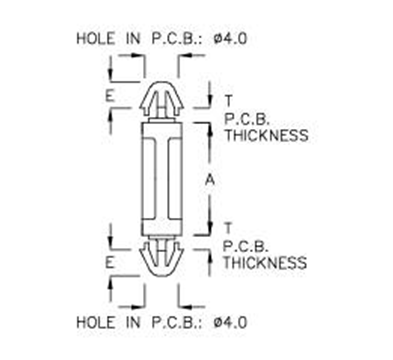

| PART NO | A | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| KCA-2M | 2.5 | 1.4~1.6 | 3.0 | 2000 |
| KCA-3 | 3.2 | 1.4~1.6 | 3.6 | |
| KCA-04 | 4.0 | 1.4~1.6 | 3.8 | |
| KCA-4A | 4.5 | 1.4~1.6 | 3.6 | |
| KCA-5 | 5.0 | 1.4~1.6 | 3.6 | 1000 |
| KCA-5A | 5.5 | 1.4~1.6 | 3.6 | |
| KCA-6 | 6.4 | 1.4~1.6 | 3.6 | |
| KCA-07 | 7.0 | 1.4~1.6 | 3.0 | |
| KCA-7A | 7.5 | 1.4~1.6 | 3.6 | |
| KCA-8 | 8.0 | 1.4~1.6 | 3.6 | |
| KCA-9 | 9.5 | 1.4~1.6 | 3.6 | |
| KCA-10 | 10.5 | 1.4~1.6 | 3.6 | |
| KCA-11 | 11.0 | 1.4~1.6 | 3.6 | |
| KCA-12 | 12.7 | 1.4~1.6 | 3.6 | |
| KCA-12S | 12.7 | 1.4~1.6 | 3.2 | |
| KCA-14 | 14.0 | 1.4~1.6 | 3.0 | |
| KCA-15 | 15.7 | 1.4~1.6 | 3.6 | |
| KCA-15L | 15.9 | 1.2~1.7 | 3.0 | |
| KCA-19 | 19.0 | 1.4~1.6 | 3.6 | |
| KCA-20 | 20.0 | 1.4~1.6 | 3.6 | |
| KCA-25 | 25.0 | 1.4~1.6 | 3.7 | |
| KCA-28A | 28.5 | 1.4~1.6 | 3.6 | 500 |
| KCA-30 | 30.0 | 1.4~1.6 | 3.7 | |
| KCA-34 | 34.0 | 1.4~1.6 | 3.6 | |
| KCA-34A | 34.0 | 1.4~1.6 | 3.7 | |
| KCA-40A | 40.4 | 1.4~1.6 | 3.6 | |
| KCA-47 | 47.0 | 1.4~1.6 | 3.25 | 200 |
| KCA-69 | 69.0 | 1.4~1.6 | 3.7 | |
| KCA-80 | 80.0 | 1.4~1.6 | 3.0 |
