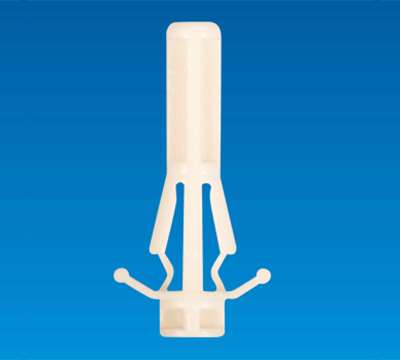

SPACER SUPPORT KDD-11

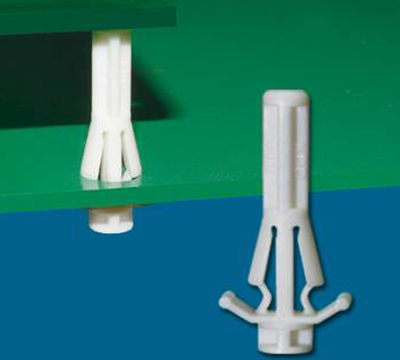

- Insert from the chassis underside.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT KDD-11
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- HOLE IN CHASSIS: Ø4.0

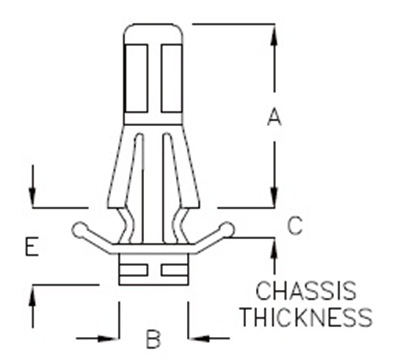

| PART NO | A | B | C CHASSIS THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| KDD-11 | 11.0 | 4.2 | 1.6 | 4.6 | 500 |
| KDD-12C | 12.5 | 4.2 | 1.6 | 4.1 | 500 |
| KDD-12MK | 12.5 | 5.0 | 1.6 | 4.7 | 500 |
| KDD-12TS | 12.5 | 5.0 | 1.6 | 5.5 | 500 |
| KDD-14C | 14.6 | 4.2 | 1.6 | 5.1 | 500 |
| KDD-15A | 15.0 | 5.0 | 1.6 | 4.6 | 500 |
| KDD-19 | 19.0 | 4.2 | 1.6 | 5.2 | 500 |
| KDD-22A | 22.3 | 4.2 | 1.6 | 5.2 | 500 |
| KDD-24 | 24.0 | 5.0 | 1.6 | 4.6 | 500 |
