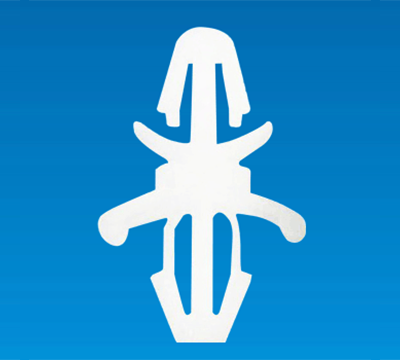

SPACER SUPPORT LBC-3A

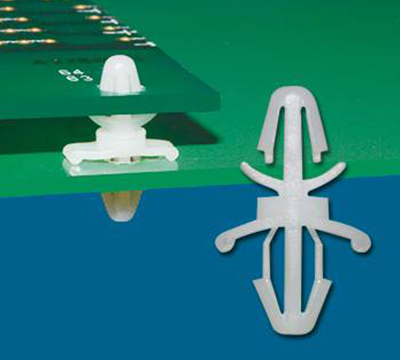

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
SPACER SUPPORT LBC-3A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

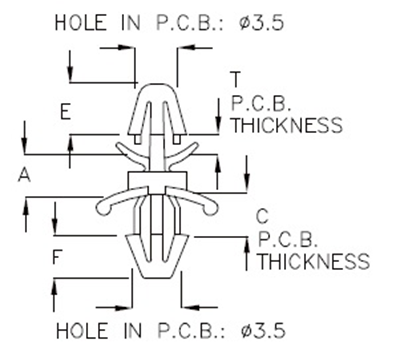

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
E | F | PACKAGE |
|---|---|---|---|---|---|---|
| LBC-3A | 3.4 | 1.0~1.6 | 2.0~2.4 | 4.0 | 3.4 | 1000 |
