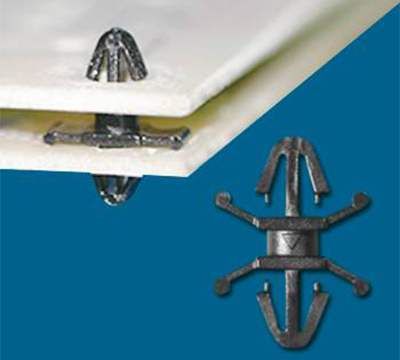

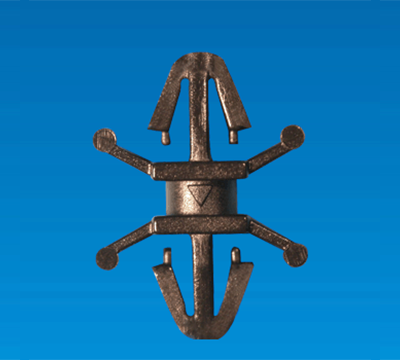

SPACER SUPPORT LCA35-3H
- Insert from the chassis underside.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT LCA35-3H
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL, BLACK

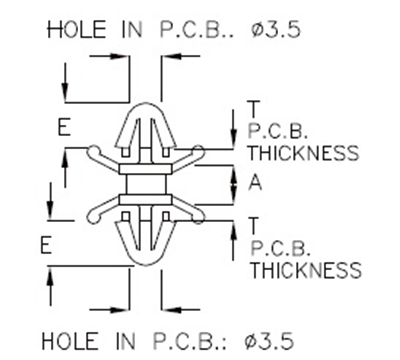

| PART NO | A | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| LCA35-3H | 3.05 | 0.3~0.6 | 3.4 | 1000 |
