Components & Accessories

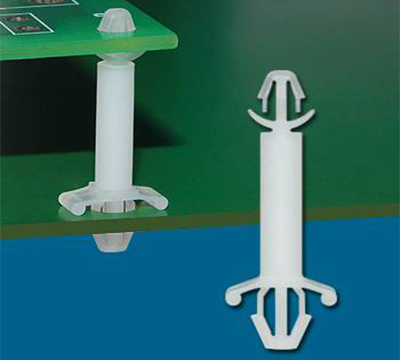

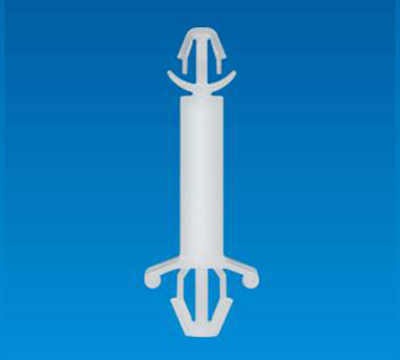

SPACER SUPPORT LCBA-15L
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPACER SUPPORT LCBA-15L
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON 66(UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

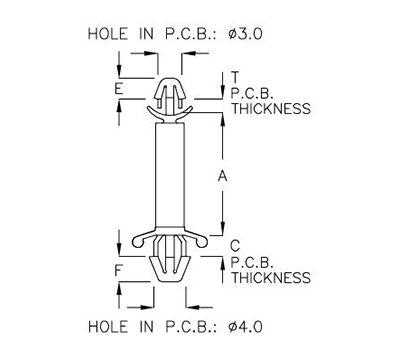

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
E | F | PACKAGE |
|---|---|---|---|---|---|---|
| LCBA-15L | 16.4 | 0.8~1.8 | 1.2~2.0 | 2.8 | 3.4 | 1000 |
