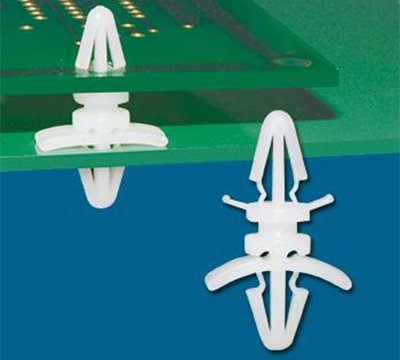

SPACER SUPPORT LCBS-5
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.

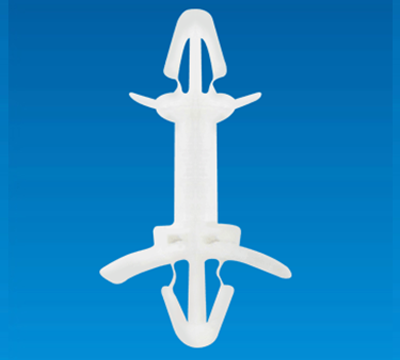

SPACER SUPPORT LCBS-5
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

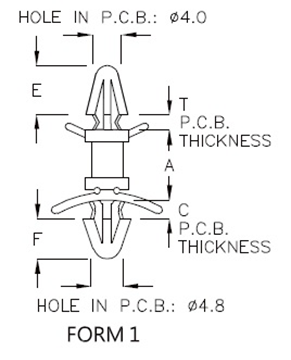

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
E | F | FORM | PACKAGE |
|---|---|---|---|---|---|---|---|
| LCBS-5 | 5.0 | 0.8~1.7 | 0.8~1.7 | 7.1 | 6.1 | 1 | 1000 |
| LCBS-6 | 6.35 | 0.8~1.7 | 0.8~1.7 | 7.1 | 6.1 | 1 | |
| LCBS-10 | 10.0 | 0.8~1.7 | 0.8~1.7 | 7.1 | 6.1 | 1 | 500 |
| LCBS-15 | 15.0 | 0.8~1.7 | 0.8~1.7 | 7.1 | 5.7 | 1 | |
| LCBS-20 | 20.0 | 0.8~1.7 | 0.8~1.7 | 7.1 | 5.7 | 1 | |
| LCBS-25 | 25.0 | 0.8~1.7 | 0.8~1.7 | 7.1 | 5.7 | 1 | |
| LCBS-29 | 29.0 | 0.8~1.7 | 0.8~1.7 | 7.1 | 6.1 | 2 | |
| LCBS-30 | 30.0 | 1.0~2.0 | 1.0~2.0 | 7.0 | 6.0 | 2 | |
| LCBS-35 | 35.0 | 0.8~1.7 | 0.8~1.7 | 7.1 | 6.1 | 1 | |
| LCBS-37KM | 37.7 | 0.8~1.7 | 1.0~2.0 | 7.1 | 6.0 | 2 | |
| LCBS-38 | 38.0 | 0.8~1.7 | 0.8~1.7 | 7.1 | 6.1 | 1 | |
| LCBS-45 | 45.0 | 0.8~1.7 | 0.8~1.7 | 7.1 | 6.1 | 1 |
