Components & Accessories

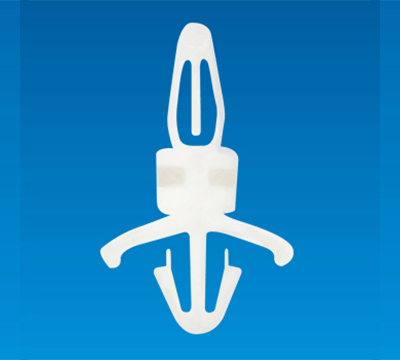

SPACER SUPPORT LCC-5
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
SPACER SUPPORT LCC-5
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

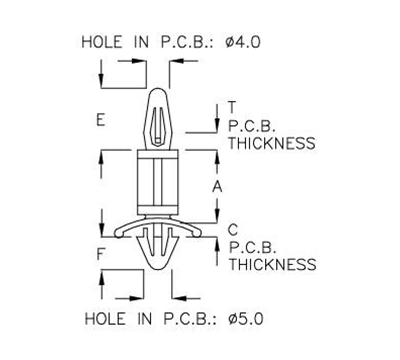

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
E | F | PACKAGE |
|---|---|---|---|---|---|---|
|
LCC-5
|
4.8 | 1.2~1.6 | 1.0~2.2 | 10.7 | 5.5 | 500 |
|
LCC-6
|
6.35 | 1.2~1.6 | 1.0~2.2 | 10.7 | 5.5 | |
|
LCC-10
|
9.6 | 1.2~1.6 | 1.0~2.2 | 10.7 | 5.5 | |
|
LCC-12
|
12.7 | 1.2~1.6 | 1.0~2.2 | 10.7 | 5.5 | |
|
LCC-15
|
15.9 | 1.2~1.6 | 1.0~2.2 | 10.7 | 5.5 |
