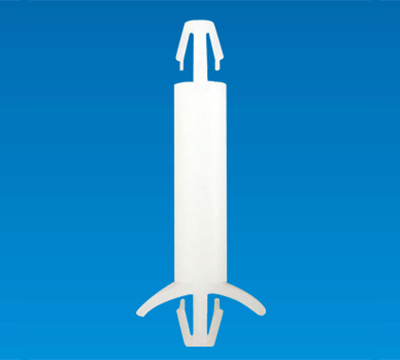

SPACER SUPPORT LCF-18A

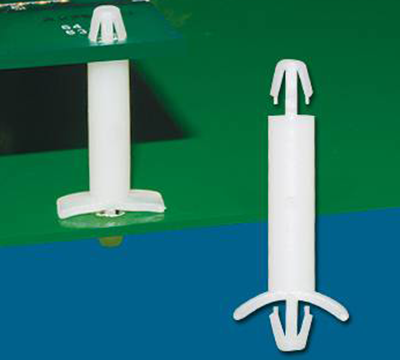

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
SPACER SUPPORT LCF-18A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

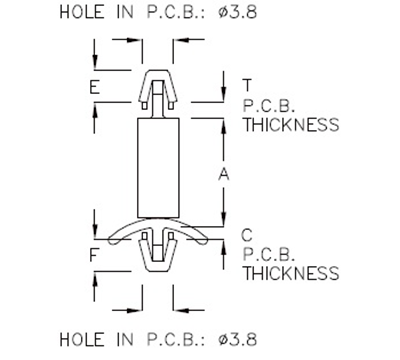

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
E | F | PACKAGE |
|---|---|---|---|---|---|---|
| LCF-18A | 17.8 | 1.4~1.6 | 0.6~1.0 | 3.5 | 3.6 | 1000 |
