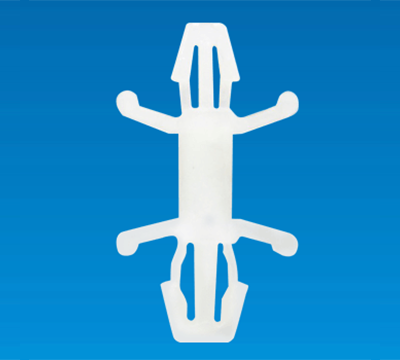

SPACER SUPPORT LCH-6A

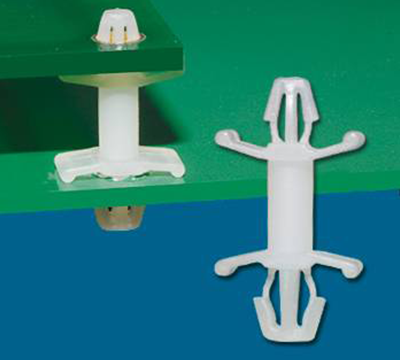

- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- One piece design,no screws, nuts and washers needed.
- Tension wings design on both ends,provide a tight fit.
SPACER SUPPORT LCH-6A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- One piece design,no screws, nuts and washers needed.
- Tension wings design on both ends,provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

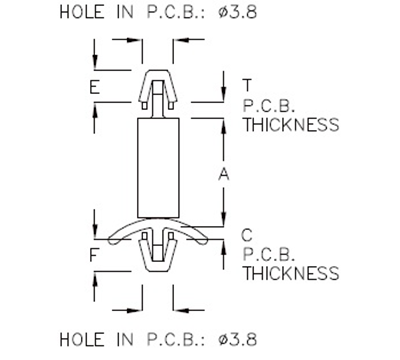

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| LCH-6A | 6.6 | 0.6~1.0 | 1.6~1.8 | 3.1 | 1000 |
| LCH-8A | 8.6 | 0.6~1.0 | 1.6~1.8 | 3.1 | 1000 |
