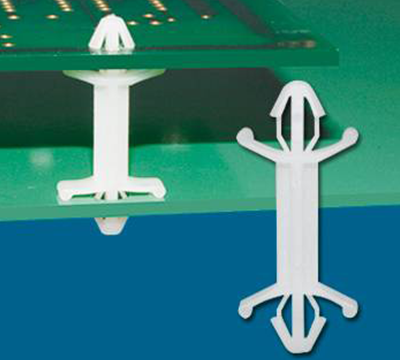

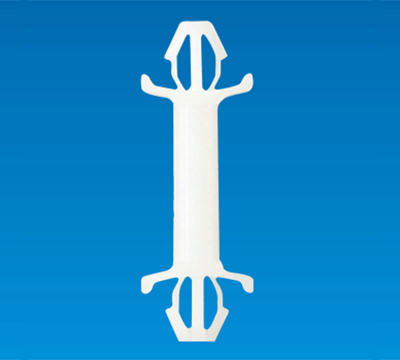

SPACER SUPPORT LCK-20
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPACER SUPPORT LCK-20
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

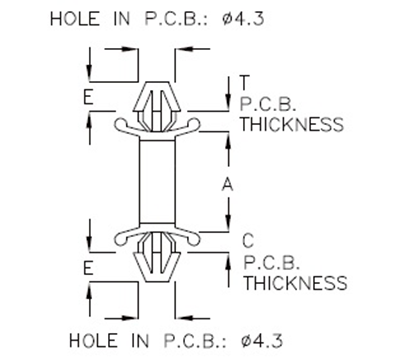

| PART NO | A | T ]P.C.B THICKNESS |
C P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| LCK-20 | 14.6 | 0.6 | 0.8~1.0 | 3.4 | 1000 |
| LCK-27 | 21.2 | 0.6 | 1.4~1.6 | 3.4 | 1000 |
