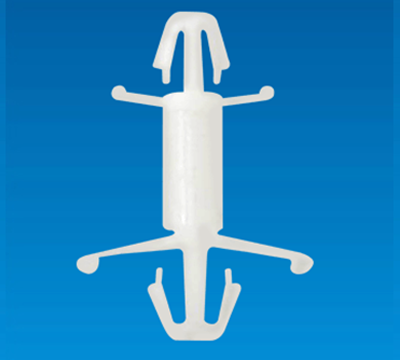

SPACER SUPPORT LCWS-12

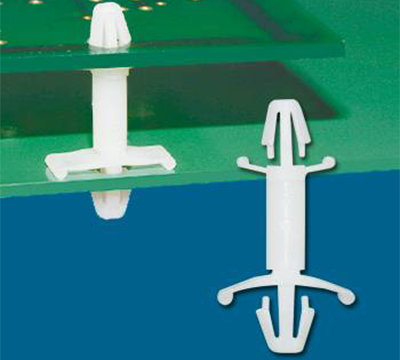

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPACER SUPPORT LCWS-12
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

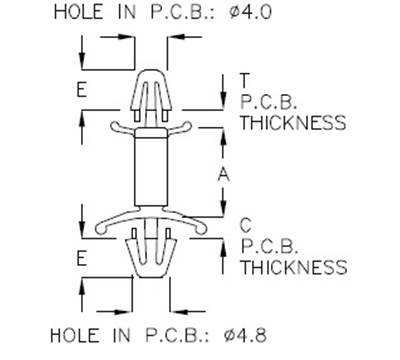

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| LCWS-12 | 12.7 | 1.4~1.6 | 0.8~2.0 | 4.8 | 500 |
