Components & Accessories

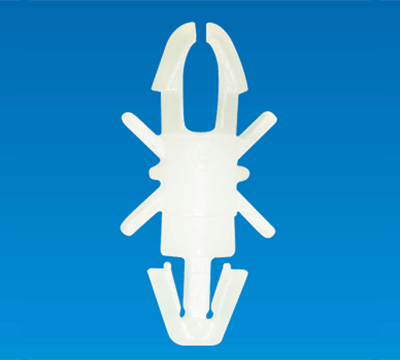

SPACER SUPPORT LCX-3A
- Insert from the chassis underside.

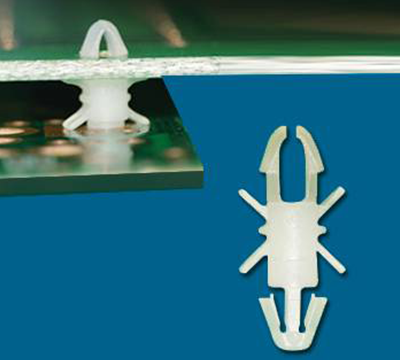

- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT LCX-3A
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance,space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

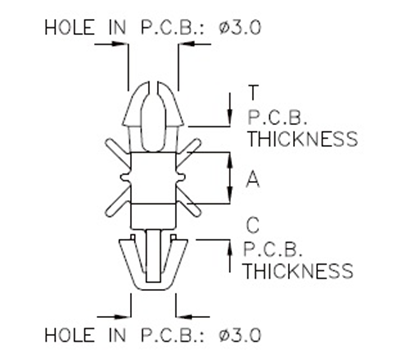

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|
| LCX-3A | 0.8~1.0 | 0.8~1.0 | 1.4~1.6 | 2000 |
