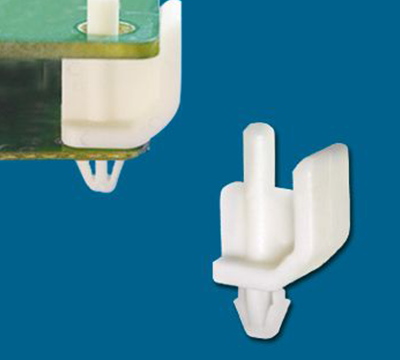

SPACER SUPPORT LKB-6PA
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.

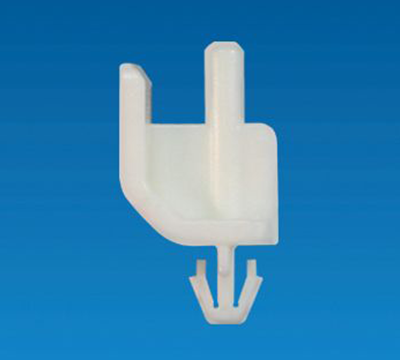

SPACER SUPPORT LKB-6PA
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

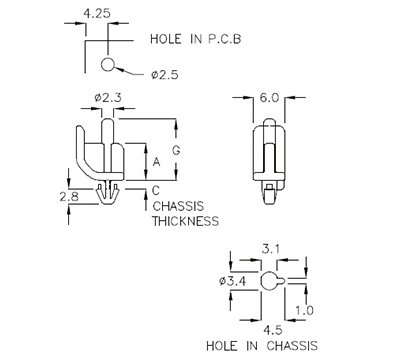

| PART NO | A | G | C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|
| LKB-6PA | 7.0 | 11.7 | 1.4~1.6 | 1000 |
