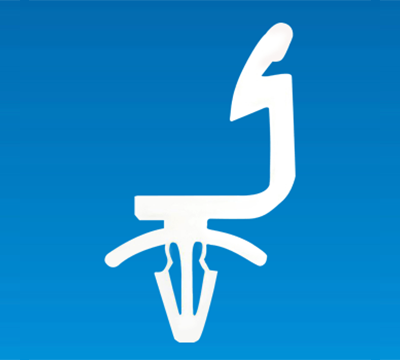

SPACER SUPPORT LLS-12

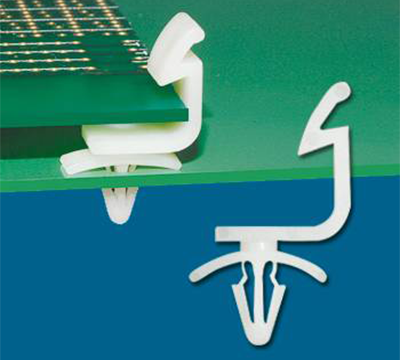

- Snap fit to joint PCB with chassis or other PCB.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
- No hole or assemble slot required on the top board
SPACER SUPPORT LLS-12
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis or other PCB.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
- One end tension wings design, provide a tight fit.
- No hole or assemble slot required on the top board
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

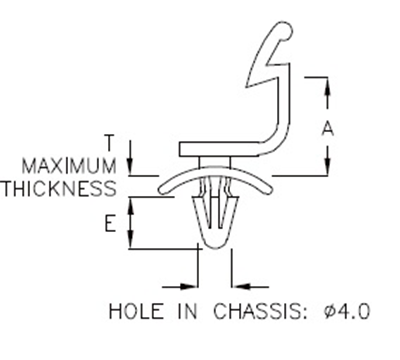

| PART NO | A | T MAXIMUM THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| LLS-12 | 12.6 | 2.0 | 6.6 | 500 |
