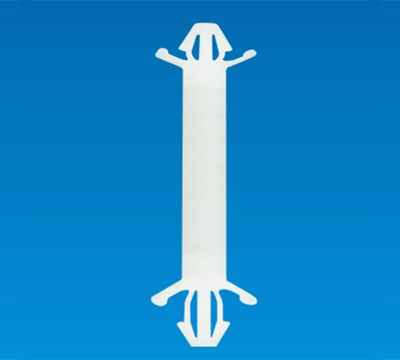

SPACER SUPPORT LMA-3A

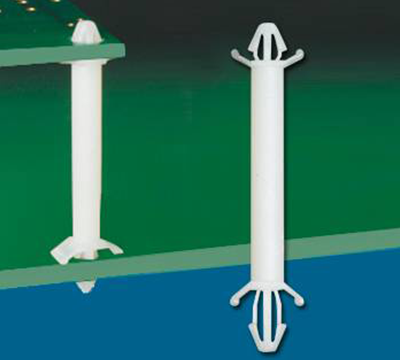

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPACER SUPPORT LMA-3A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- One piece design, no screws, nuts and washers needed.
- Tension wings design on both ends, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

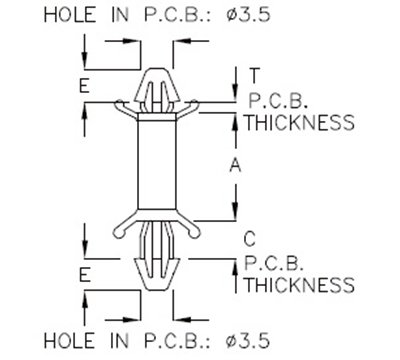

| PART NO | A | E | T P.C.B THICKNESS |
C P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| LMA-3A | 3.6 | 3.2 | 0.8~1.6 | 2.0~2.6 | 1000 |
| LMA-27 | 27.5 | 3.5 | 0.4~1.1 | 2.5~3.6 | 500 |
