Components & Accessories

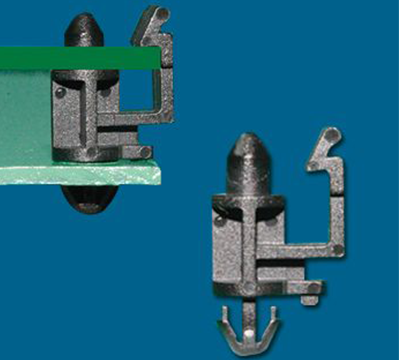

SPACER SUPPORT LMG-8AT
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT LMG-8AT
FEATURES
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

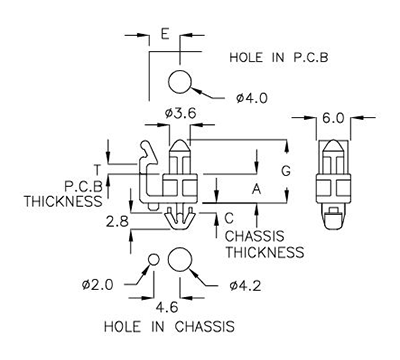

| PART NO | A | G | E | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|
| LMG-8AT | 8.0 | 13.0 | 5.9 | 1.6 | 1.6 | 1000 |
