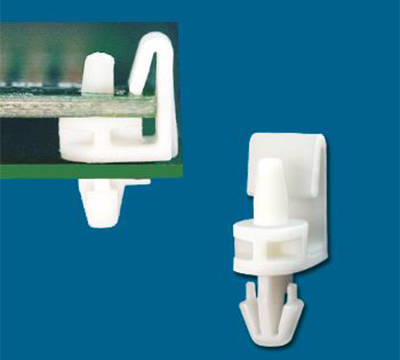

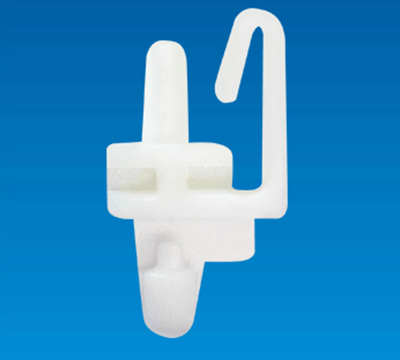

SPACER SUPPORT LMK-2YW
- Snap fit to joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Tension wings design on both ends, provide a tight fit.
SPACER SUPPORT LMK-2YW
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Tension wings design on both ends, provide a tight fit.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

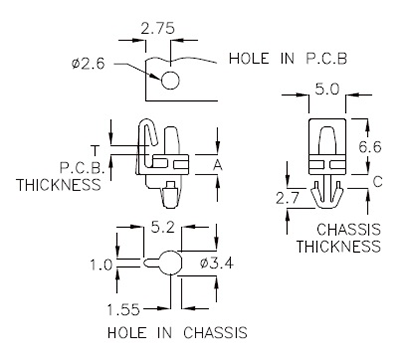

| PART NO | A | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|
| LMK-2YW | 2.8 | 0.8~1.0 | 1.4~1.6 | 2000 |
