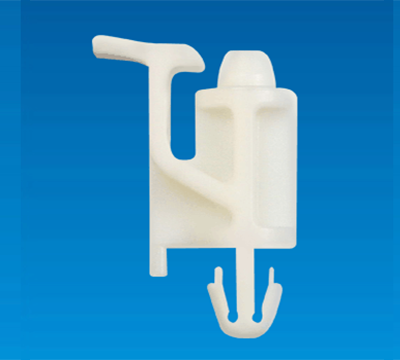

SPACER SUPPORT LMR-08

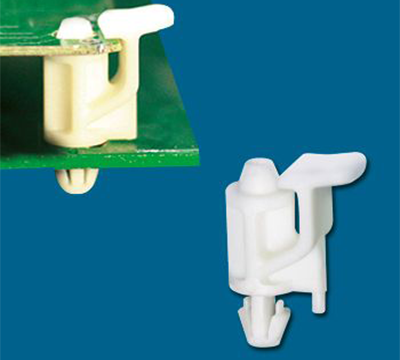

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPACER SUPPORT LMR-08
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

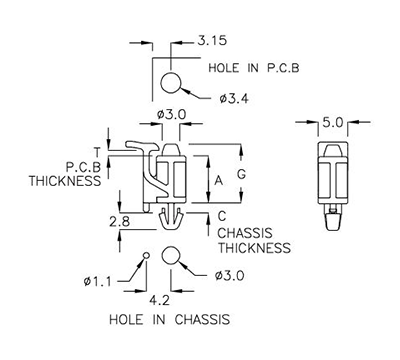

| PART NO | A | G | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| LMR-08 | 8.0 | 10.0 | 0.6~0.8 | 1.4~1.6 | 1000 |
