Components & Accessories

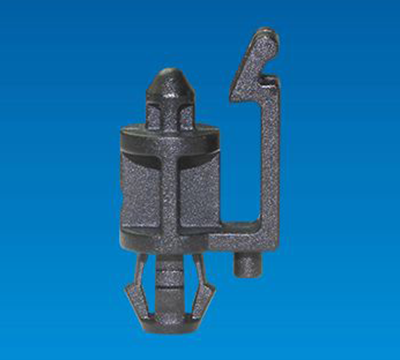

SPACER SUPPORT LMW-07

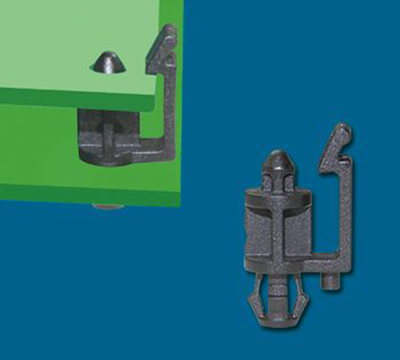

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Easily removed for repairing or changing.
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK

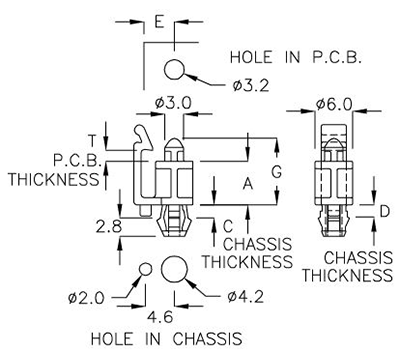

| PART NO | A | G | E | T P.C.B. THICKNESS |
C CHASSIS THICKNESSPAC |
D CHASSIS THICKNESSPAC |
PACKAGE |
|---|---|---|---|---|---|---|---|
| LMW-07 | 7.0 | 10.7 | 4.8 | 1.6 | 2.6 | 1.7 | 1000 |
