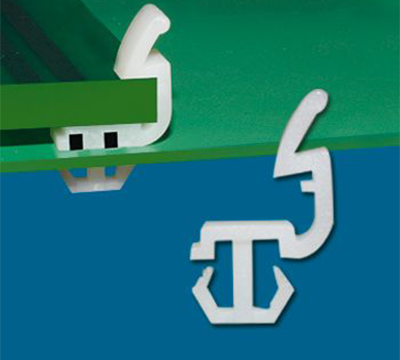

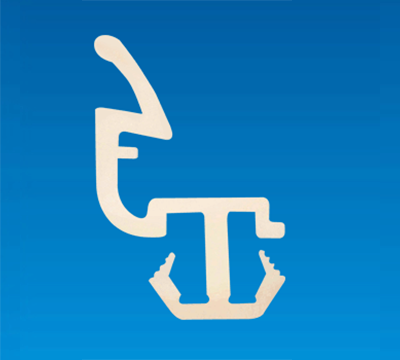

SPACER SUPPORT LS-3A
- Snap fit to hold PCB in postion.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPACER SUPPORT LS-3A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to hold PCB in postion.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

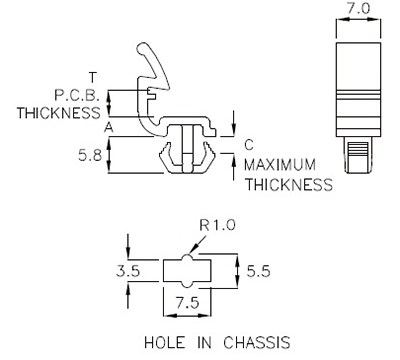

| PART NO | A | T P.C.B. THICKNESS |
C MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|
| LS-3A | 3.0 | 3.8~4.0 | 2.0 | 500 |
