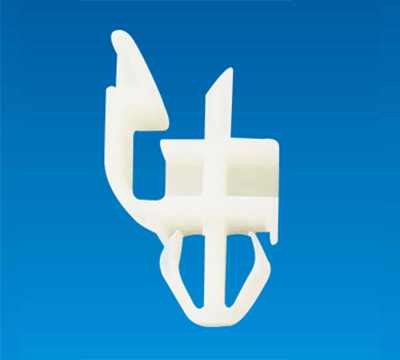

SPACER SUPPORT LS-7

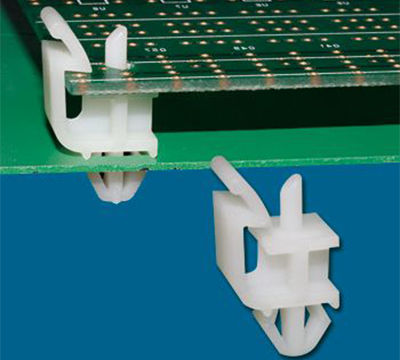

- Snap fit to joint PCB with chassis or other PCB.
- Provides distance,space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
- Locking arm clip design, easy to remove and replace.
SPACER SUPPORT LS-7
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis or other PCB.
- Provides distance,space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
- Locking arm clip design, easy to remove and replace.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

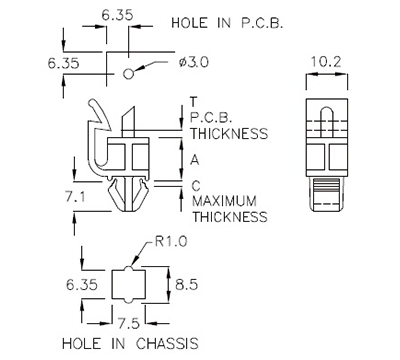

| PART NO | A | T P.C.B. THICKNESS |
C MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|
| LS-7 | 7.5 | 0.8~2.2 | 1.4 | 500 |
| LS-10 | 10.0 | 0.8~2.2 | 1.4 | 500 |
