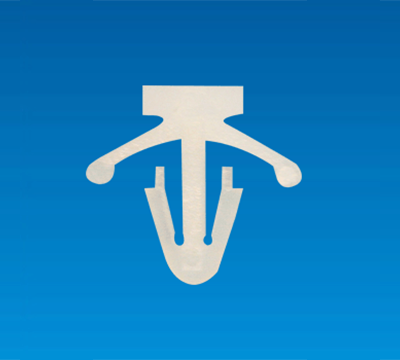

SPACER SUPPORT LSJ-2A

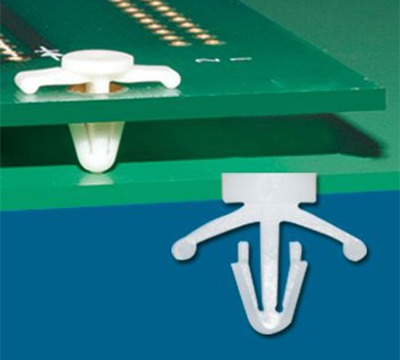

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPACER SUPPORT LSJ-2A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
| PART NO | A | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| PCE-1AL | 1.5 | 1.4~1.6 | 2.0 | 2000 |
| PCE-2L | 2.0 | 1.4~1.6 | 2.0 | |
| PCE-2M | 2.5 | 1.4~1.6 | 2.0 | |
| PCE-3L | 3.0 | 1.4~1.6 | 2.0 | |
| PCE-3M | 3.5 | 1.4~1.6 | 2.0 | |
| PCE-04 | 4.0 | 1.4~1.6 | 2.0 | |
| PCE-4EW | 4.5 | 1.4~1.6 | 2.0 | |
| PCE-5BZ | 5.0 | 1.4~1.6 | 2.0 |
