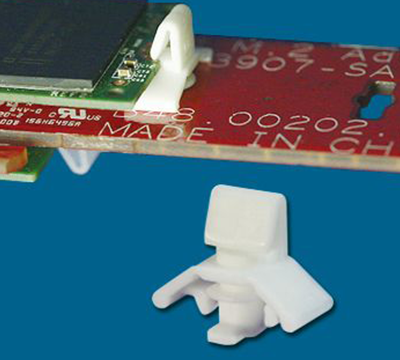

SPACER SUPPORT LSZ-4A
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.

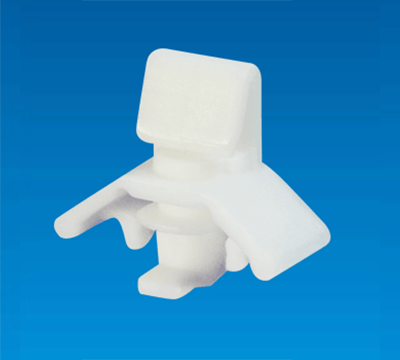

SPACER SUPPORT LSZ-4A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

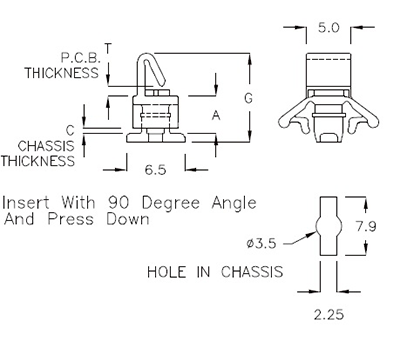

| PART NO | A | G | T P.C.B. THICKNESS |
C CLASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| LSZ-4A | 4.15 | 10.0 | 0.8 | 1.0~1.6 | 1000 |
