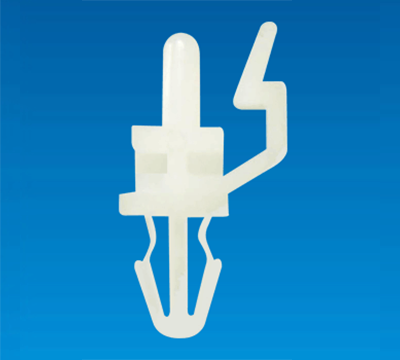

SPACER SUPPORT LT-08A

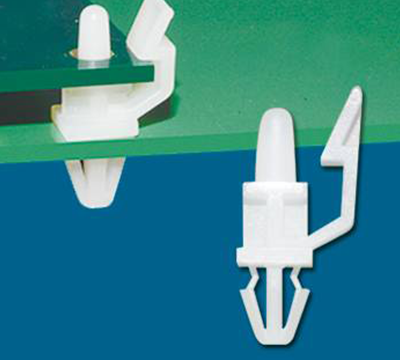

- Snap fit to joint PCB with chassis or other PCB.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
- Locking arm clip design, easy to remove and replace.
SPACER SUPPORT LT-08A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis or other PCB.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
- Locking arm clip design, easy to remove and replace.
SPECIFICATION
- MATERIAL: NYLON 66(UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

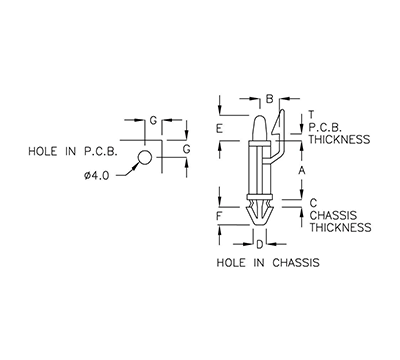

| PART NO | A | B | D | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
E | F | G | PACKAGE |
|---|---|---|---|---|---|---|---|---|---|
| LT-08A | 7.5 | 5.8 | Ø4.5 | 1.4~1.6 | 1.2~1.6 | 7.0 | 5.2 | 5.0 | 500 |
| LT-18A | 18.6 | 5.4 | Ø4.5 | 1.4~1.6 | 1.0~1.4 | 7.4 | 5.2 | 5.0 |
