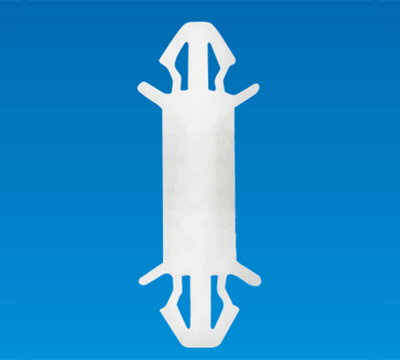

SPACER SUPPORT LTA3-10M

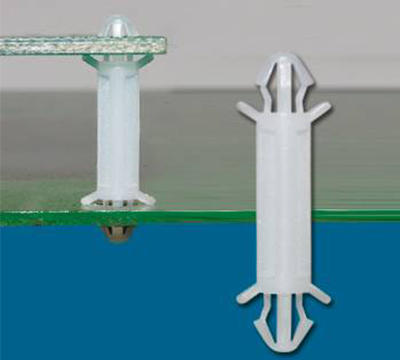

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- Install quickly by hand.
SPACER SUPPORT LTA3-10M
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
- Install quickly by hand.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

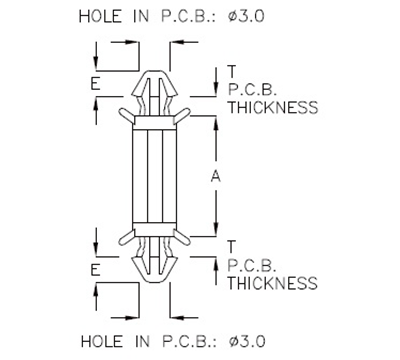

PART NO
|
A
|
T
P.C.B THICKNESS |
E
|
PACKAGE
|
|---|---|---|---|---|
|
LTA3-10M
|
10.5
|
1.2~1.6
|
2.5
|
1000
|
|
LTA3-12
|
12.0
|
1.2~1.6
|
2.5
|
|
|
LTA3-13
|
13.0
|
1.2~1.6
|
2.5
|
|
|
LTA3-18M
|
18.3
|
1.2~1.6
|
2.5
|
|
|
LTA3-36A
|
36.8
|
0.8~1.8
|
2.5
|
500
|
|
LTA3-40
|
40.0
|
1.2~1.6
|
2.5
|
