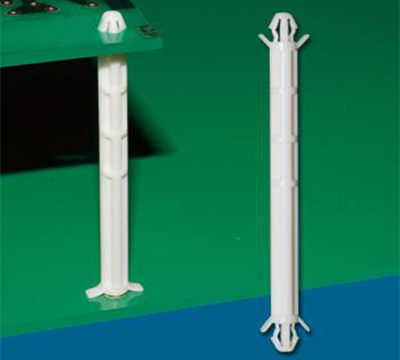

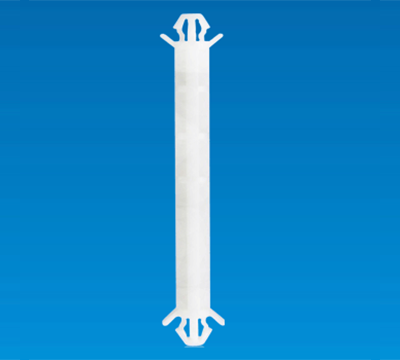

SPACER SUPPORT LTA3-40A
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPACER SUPPORT LTA3-40A
FEATURES
SPECIFICATION
FEATURES
- Insert from the chassis underside.
- Provides distance, space and support between Circuit board and chassis.
- Minimize the protrusion on chassis bottom.
- Reverse locking circuit board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

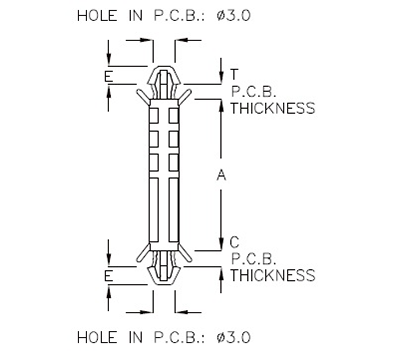

| PART NO | A | T P.C.B. THICKNESS |
C P.C.B. THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| LTA3-40A | 40.8 | 1.2~1.6 | 1.4~1.6 | 2.4 | 1000 |
| LTA3-41A | 41.5 | 1.2~1.6 | 1.4~1.6 | 2.4 | 1000 |
