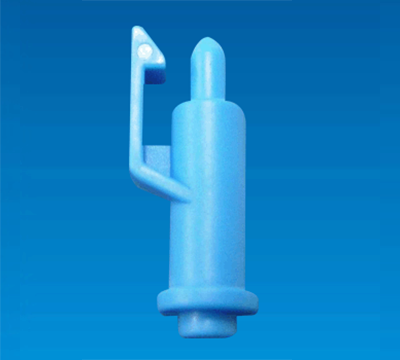

SPACER SUPPORT LTF-01
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPACER SUPPORT LTF-01
FEATURES
SPECIFICATION
FEATURES

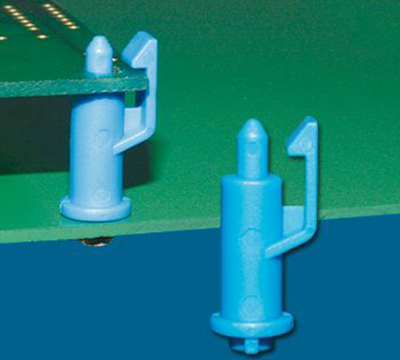

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLUE
- TAPPING SCREW M3 x 8

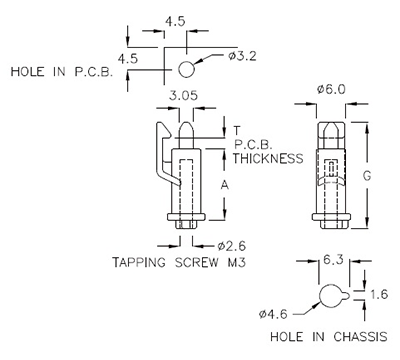

| PART NO | A | G | T P.C.B. THICKNESS |
PACKAGE |
|---|---|---|---|---|
| LTF-01 | 15.0 | 22.2 | 1.6~1.8 | 500 |
