SPACER SUPPORT LTG-5A

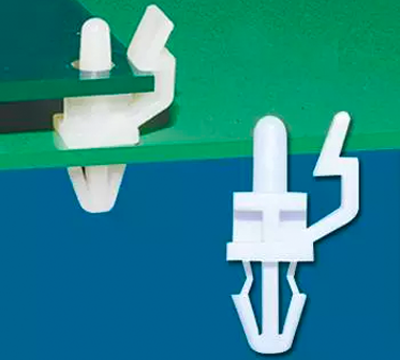

- Snap fit to joint PCB with chassis or other PCB.
- Provides distance,space and support between Circuit boards.
- One piece design,no screws,nuts and washers needed.
- One end tension wings design,provide a tight fit.
- Locking arm clip design,easy to remove and replace.
SPACER SUPPORT LTG-5A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis or other PCB.
- Provides distance,space and support between Circuit boards.
- One piece design,no screws,nuts and washers needed.
- One end tension wings design,provide a tight fit.
- Locking arm clip design,easy to remove and replace.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

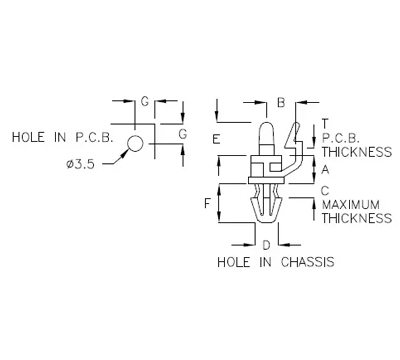

| PART NO | A | B | D | T P.C.B THICKNESS |
C MAXIMUM THICKNESS |
E | F | G | PACKAGE |
|---|---|---|---|---|---|---|---|---|---|
| LTG-5A | 5.7 | 5.7 | Ø4.7 | 0.8~1.0 | 2.4 | 6.5 | 5.0 | 5.2 | 500 |
