Components & Accessories

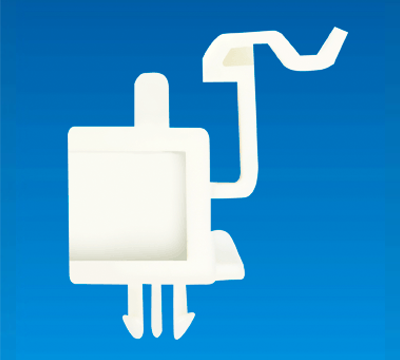

SPACER SUPPORT LTH-9PN

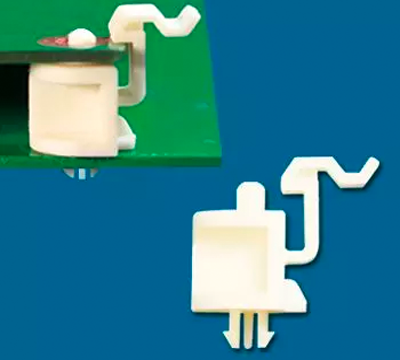

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPACER SUPPORT LTH-9PN
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Square hole fitting.
- Easily assembly.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

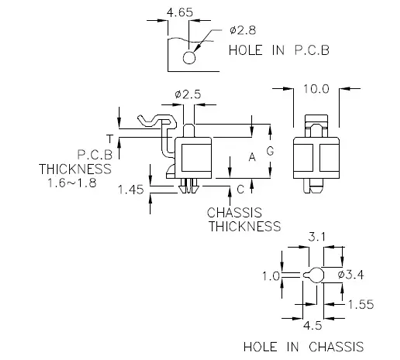

| PART NO | A | G | T P.C.B. THICKNESS |
C MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| LTH-9PN | 9.0 | 12.0 | 1.6~1.8 | 1.4~1.6 | 1000 |
