Components & Accessories

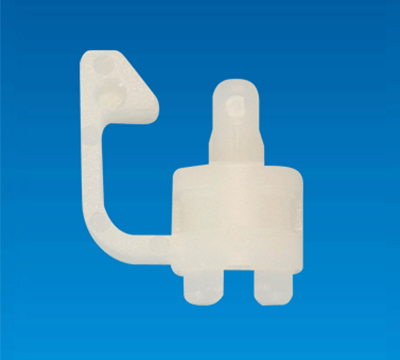

SPACER SUPPORT LTK-6A

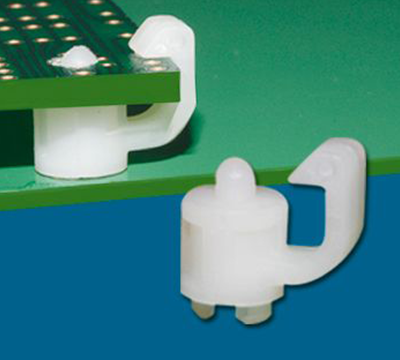

- Snap fit to hold PCB in postion.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPACER SUPPORT LTK-6A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to hold PCB in postion.
- Provides distance and space between Circuit boards.
- Easily assembly for application.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- TAPPING SCREW M3.5 x 6

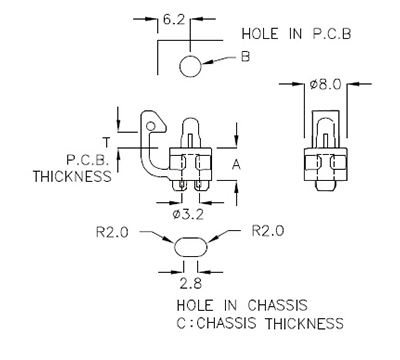

| PART NO | A | B | C CHASSIS THICKNESS |
T P.C.B. THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| LTK-6A | 6.2 | Ø4.0 | 2.0~2.3 | 2.8~3.0 | 1000 |
| LTK-7C | 7.5 | Ø3.3 | 2.5~2.7 | 1.6~1.85 | 1000 |
