Components & Accessories

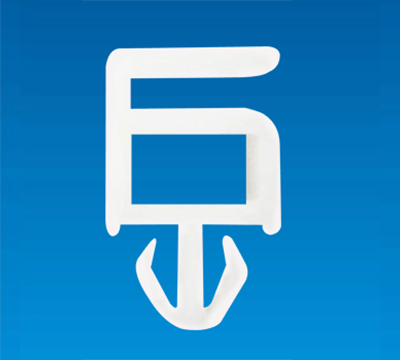

SPACER SUPPORT LTS-10A

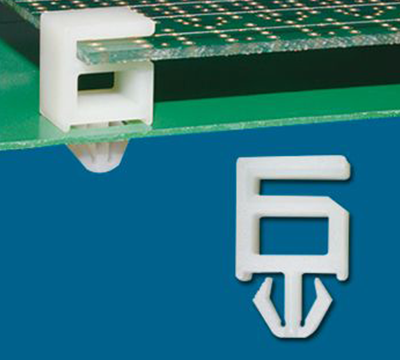

- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPACER SUPPORT LTS-10A
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Slide installation, no need for a mounting hole on top PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

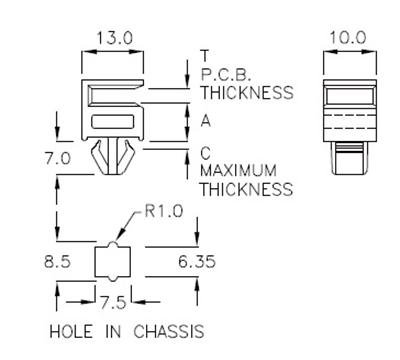

| PART NO | A | T P.C.B. THICKNESS |
C MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|
| LTS-10A | 10.0 | 1.2~2.2 | 1.6 | 500 |
