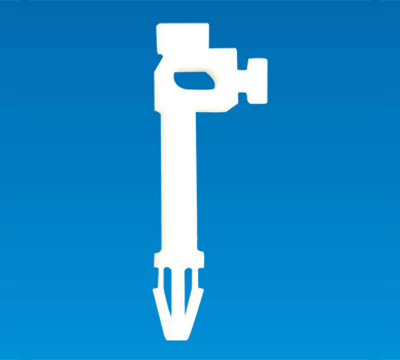

SPACER SUPPORT LTU-20

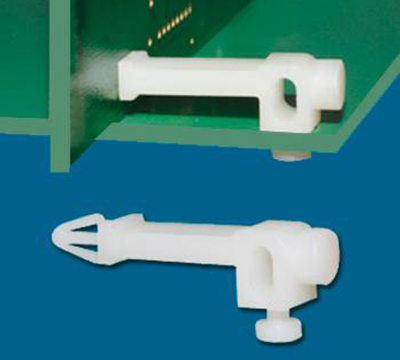

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Provide the function to mount circuit board to chassis vertically.
SPACER SUPPORT LTU-20
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Provide the function to mount circuit board to chassis vertically.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

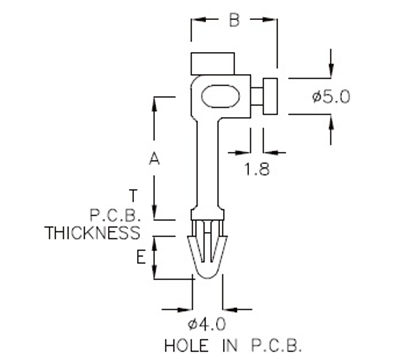

| PART NO | A | B | T P.C.B. THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| LTU-20 | 20.0 | 12.1 | 1.7 | 6.0 | 500 |
| LTU-20A | 20.0 | 12.1 | 2.0 | 6.0 | 500 |
