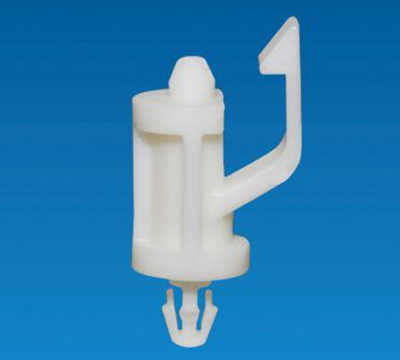

SPACER SUPPORT LTZ-12HC

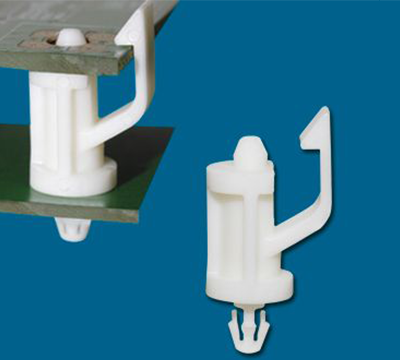

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT LTZ-12HC
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mount end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

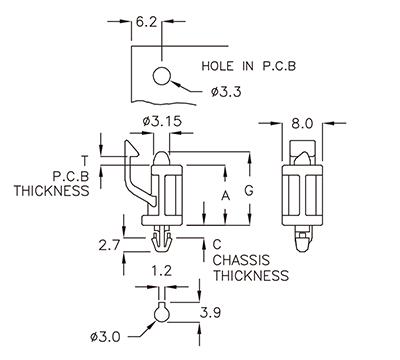

| PART NO | A | G | T P.C.B THICKNESS |
C CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| LTZ-12HC | 12.0 | 14.7 | 1.6 | 2.4 | 500 |
