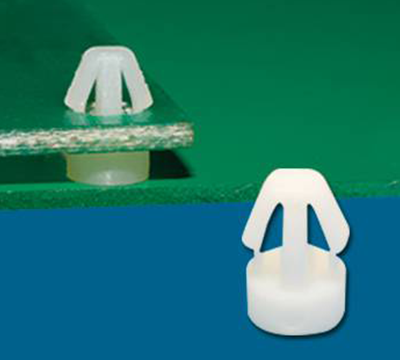

SPACER SUPPORT MC-1AK
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.

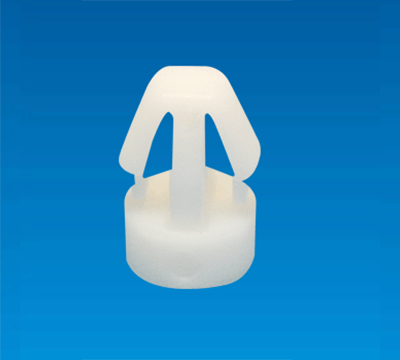

SPACER SUPPORT MC-1AK
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- One piece design, no screws, nuts and washers needed.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

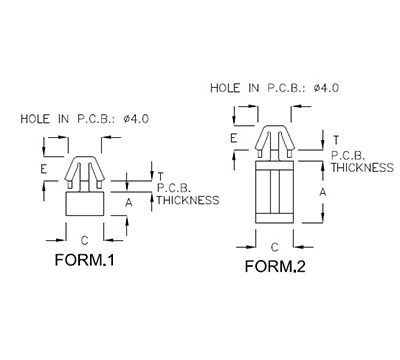

| PART NO | A | T P.C.B THICKNESS |
C | E | FORM | PACKAGE |
|---|---|---|---|---|---|---|
| MC-1AK | 1.5 | 0.6~0.8 | Ø5.0 | 3.0 | 1 | 2000 |
| MC-002 | 2.0 | 0.6~0.8 | Ø5.0 | 3.6 | 1 | |
| MC-02A | 2.0 | 0.7~0.8 | Ø4.8 | 2.5 | 1 | |
| MC-02C | 2.0 | 0.9~1.2 | Ø5.0 | 3.8 | 1 | |
| MC-2DP | 2.0 | 0.85~1.15 | Ø6.8 | 2.2 | 1 | |
| MC-2M | 2.5 | 1.2~1.6 | Ø5.0 | 3.6 | 1 | |
| MC-2NJ | 2.0 | 0.85~1.0 | Ø5.0 | 2.2 | 1 | |
| MC-2P | 2.3 | 1.2~1.6 | Ø5.0 | 3.5 | 1 | |
| MC-3 | 3.0 | 1.2~1.7 | Ø5.1 | 3.4 | 2 | 2000 |
| MC-3A | 3.0 | 1.6~2.0 | Ø7.0 | 2.9 | 2 | |
| MC-3K | 3.5 | 1.2~1.6 | Ø5.0 | 3.5 | 2 | |
| MC-3QS | 3.2 | 1.2~1.6 | Ø5.0 | 3.5 | 2 | |
| MC-4 | 4.0 | 1.2~1.7 | Ø5.2 | 3.4 | 2 | |
| MC-4KP | 4.0 | 1.6~1.8 | Ø7.0 | 2.9 | 2 | |
| MC-04D | 4.5 | 1.2~1.7 | Ø5.0 | 3.3 | 2 | |
| MC-5B | 5.0 | 0.8~1.0 | Ø5.1 | 3.4 | 2 | |
| MC-06A | 6.5 | 1.2~1.7 | Ø5.0 | 3.3 | 2 | |
| MC-07M | 7.5 | 1.2~1.7 | Ø5.0 | 3.3 | 2 | |
| MC-8 | 8.0 | 1.2~1.7 | Ø4.9 | 3.6 | 2 | |
| MC-8A | 8.5 | 1.2~1.6 | Ø5.1 | 3.3 | 2 | |
| MC-09 | 9.0 | 1.2~1.6 | Ø5.1 | 3.3 | 2 | |
| MC-10A | 10.0 | 1.2~1.6 | Ø5.1 | 3.3 | 2 | 1000 |
| MC-14 | 14.0 | 1.2~1.6 | Ø5.1 | 3.5 | 2 | |
| MC-14C | 14.5 | 1.2~1.6 | Ø5.1 | 3.0 | 2 | |
| MC-15C | 15.9 | 1.2~1.6 | Ø5.1 | 3.0 | 2 | |
| MC-35 | 35.0 | 1.2~1.6 | Ø5.1 | 3.3 | 2 | 500 |
