SPACER SUPPORT MC-5

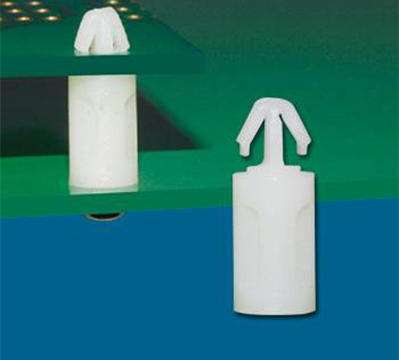

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Tapping Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPACER SUPPORT MC-5
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- Tapping Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

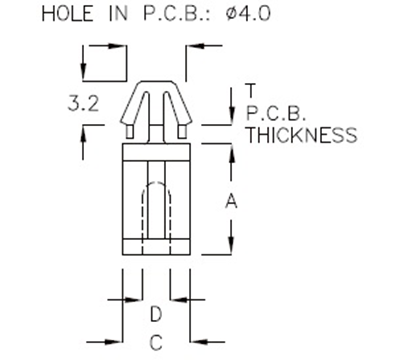

PART NO
|
A
|
T
P.C.B
THICKNESS
|
C
|
D
TAPPING
SCREW
|
PACKAGE
|
|---|---|---|---|---|---|
|
MC-5
|
5.0
|
1.2~1.7
|
Ø4.95
|
M2.5
|
2000
|
|
MC-6
|
6.35
|
1.2~1.7
|
Ø4.9
|
M2.5
|
|
|
MC-10
|
9.7
|
1.2~1.7
|
Ø5.8
|
M2.5
|
1000
|
|
MC-12
|
12.7
|
1.2~1.7
|
Ø5.8
|
M2.5
|
