Components & Accessories

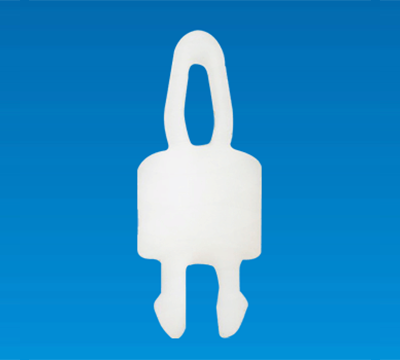

SPACER SUPPORT MCA-4

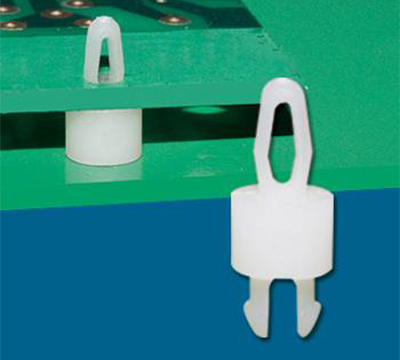

- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- Hollow and teardrop design on ends to increase holding power.
SPACER SUPPORT MCA-4
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- Hollow and teardrop design on ends to increase holding power.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

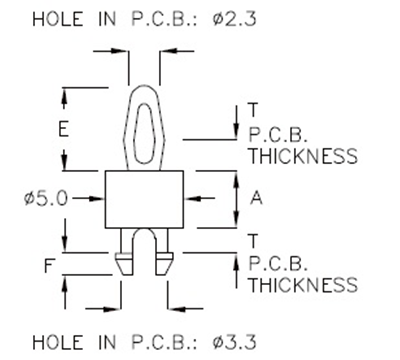

| PART NO | A | T P.C.B THICKNESS |
E | F | PACKAGE |
|---|---|---|---|---|---|
| MCA-4 | 3.8 | 0.8~1.6 | 5.8 | 1.5 | 2000 |
| MCA-06 | 6.0 | 0.8~1.6 | 5.8 | 1.4 | 2000 |
