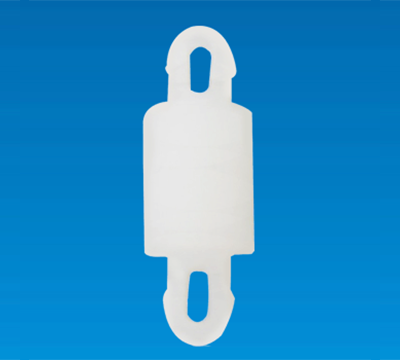

SPACER SUPPORT MCD2-2
- Snap fit to joint PCBs.

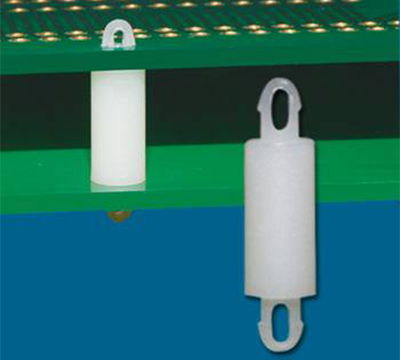

- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- Hollow and teardrop design on ends to increase holding power.
SPACER SUPPORT MCD2-2
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual mini locking head design.
- Hollow and teardrop design on ends to increase holding power.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

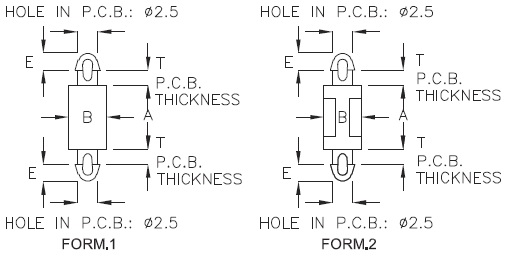

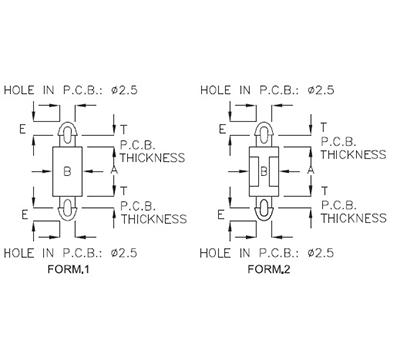

| PART NO | A | B | E | T P.C.B THICKNESS |
FORM | PACKAGE |
|---|---|---|---|---|---|---|
| MCD2-2 | 2.0 | Ø4.5 | 2.2 | 1.2~1.6 | 1 | 2000 |
| MCD2-2M | 2.5 | Ø4.5 | 2.0 | 1.2~1.6 | 1 | |
| MCD2-3 | 3.0 | Ø4.5 | 2.2 | 1.2~1.6 | 1 | |
| MCD2-3A | 3.2 | Ø4.3 | 2.2 | 1.2~1.6 | 1 | |
| MCD2-3M | 3.5 | Ø4.5 | 2.0 | 1.2~1.6 | 1 | |
| MCD2-4 | 4.0 | Ø4.5 | 2.2 | 1.2~1.6 | 1 | |
| MCD2-4M | 4.5 | Ø4.5 | 2.1 | 1.2~1.6 | 1 | |
| MCD2-5 | 5.0 | Ø4.5 | 2.2 | 1.2~1.6 | 1 | |
| MCD2-5M | 5.5 | Ø4.5 | 2.0 | 1.2~1.6 | 1 | |
| MCD2-6 | 6.0 | Ø4.5 | 2.2 | 1.2~1.6 | 1 | |
| MCD2-6M | 6.5 | Ø4.5 | 2.1 | 1.2~1.6 | 1 | |
| MCD2-7 | 7.0 | Ø4.5 | 2.4 | 1.2~1.6 | 1 | |
| MCD2-7A | 7.5 | Ø4.5 | 2.2 | 1.6~1.8 | 2 | |
| MCD2-8 | 8.0 | Ø4.5 | 2.2 | 1.2~1.6 | 1 | |
| MCD2-9M | 9.5 | Ø4.5 | 2.0 | 1.2~1.6 | 1 | 1000 |
| MCD2-10 | 10.0 | Ø4.5 | 2.2 | 1.2~1.6 | 1 | |
| MCD2-12 | 12.0 | Ø4.5 | 2.2 | 1.2~1.6 | 1 | |
| MCD2-20 | 20.0 | Ø4.5 | 2.0 | 1.2~1.6 | 2 |
