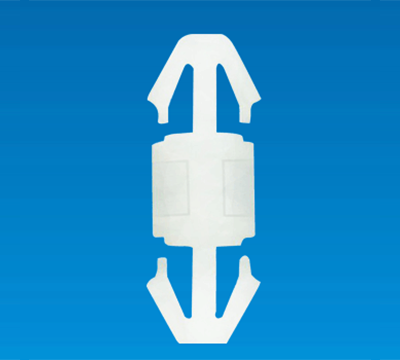

SPACER SUPPORT MCE-2A

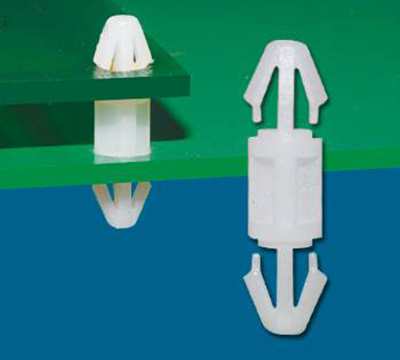

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
SPACER SUPPORT MCE-2A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
|

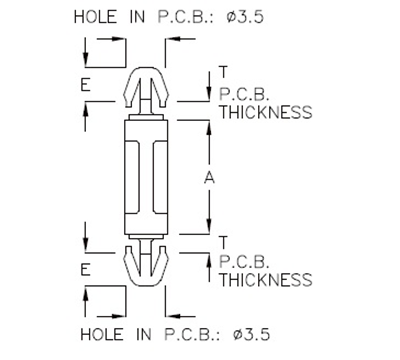

PART NO
|
A
|
T
P.C.B
THICKNESS
|
E |
PACKAGE
|
|---|---|---|---|---|
|
MCE-2A
|
2.5
|
1.4~1.8
|
3.75
|
2000
|
|
MCE-03
|
3.0
|
1.4~1.8
|
3.7
|
|
|
MCE-3A
|
3.5
|
1.4~1.8
|
3.75
|
|
|
MCE-4
|
4.0
|
1.4~1.8
|
3.7
|
|
|
MCE-4A
|
4.5
|
1.4~1.8
|
3.75
|
|
|
MCE-05
|
5.0
|
1.4~1.8
|
3.7
|
|
|
MCE-5A
|
5.5
|
1.4~1.8
|
3.75
|
|
|
MCE-6A
|
6.0
|
1.4~1.8
|
3.75
|
|
|
MCE-6
|
6.35
|
1.4~1.8
|
3.7
|
|
|
MCE-07
|
7.0
|
1.4~1.8
|
3.7
|
|
|
MCE-7A
|
7.0
|
1.4~1.8
|
2.8
|
|
|
MCE-8
|
8.0
|
1.4~1.8
|
3.7
|
|
|
MCE-10
|
9.7
|
1.4~1.8
|
3.7
|
1000
|
|
MCE-12
|
12.7
|
1.4~1.8
|
3.7
|
|
|
MCE-15A
|
15.0
|
1.4~1.6
|
2.8
|
