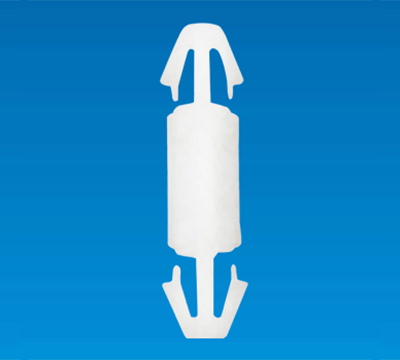

SPACER SUPPORT MCF-2A

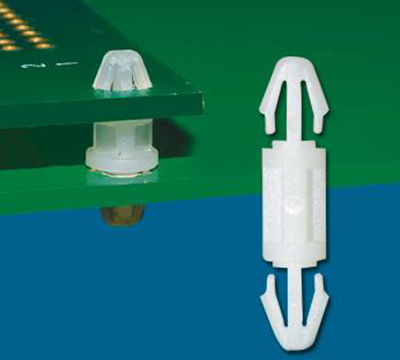

- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
SPACER SUPPORT MCF-2A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance, space and support between Circuit boards.
- Dual locking head design.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

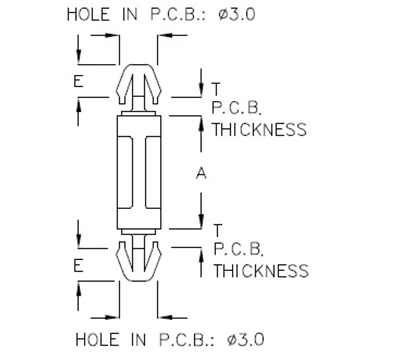

| PART NO | A | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|
| MCF-2A | 2.5 | 1.2~1.8 | 3.6 | 2000 |
| MCF-03 | 3.0 | 1.2~1.8 | 3.7 | |
| MCF-3M | 3.5 | 1.2~1.8 | 3.6 | |
| MCF-04 | 4.0 | 1.2~1.8 | 3.7 | |
| MCF-4M | 4.5 | 1.2~1.8 | 3.6 | |
| MCF-05 | 5.0 | 1.2~1.8 | 3.7 | |
| MCF-5M | 5.5 | 1.2~1.8 | 3.6 | |
| MCF-6 | 6.4 | 1.2~1.8 | 3.7 | |
| MCF-07 | 7.0 | 1.2~1.8 | 3.7 | |
| MCF-8 | 8.0 | 1.2~1.8 | 3.7 | |
| MCF-09 | 9.0 | 1.2~2.0 | 3.6 | |
| MCF-10 | 9.7 | 1.2~1.8 | 3.7 | |
| MCF-12 | 12.7 | 1.2~1.8 | 3.7 | 1000 |
| MCF-57 | 57.0 | 1.4~1.6 | 3.5 | 500 |
