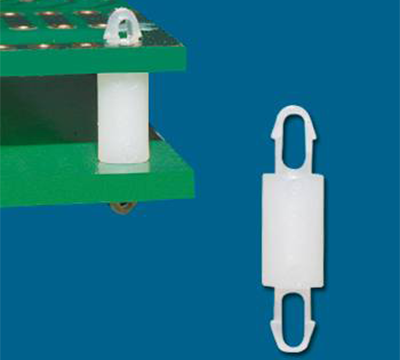

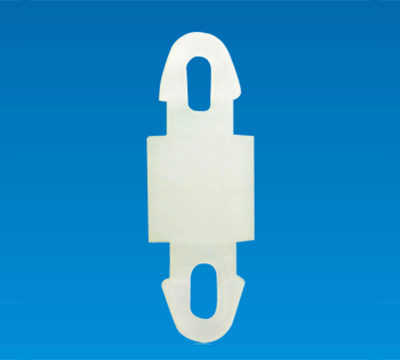

SPACER SUPPORT MCS-2A
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- Hollow and teardrop design on ends to increase holding power.
SPACER SUPPORT MCS-2A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Dual mini locking head design.
- Hollow and teardrop design on ends to increase holding power.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

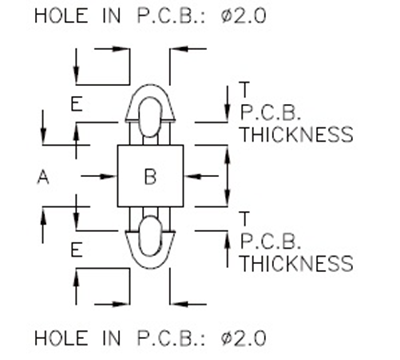

| PART NO | A | B | T P.C.B THICKNESS |
E | PACKAGE |
|---|---|---|---|---|---|
| MCS-2A | 2.2 | Ø3.2 | 1.0 | 1.85 | 2000 |
| MCS-2F | 2.2 | Ø3.2 | 1.6 | 1.85 | |
| MCS-03 | 3.0 | Ø3.2 | 1.0 | 1.95 | |
| MCS-3DF | 3.5 | Ø3.2 | 1.0 | 1.85 | |
| MCS-04 | 4.0 | Ø3.2 | 1.0 | 1.85 | |
| MCS-4A | 4.5 | Ø3.2 | 1.6 | 1.85 | |
| MCS-4C | 4.0 | Ø3.2 | 1.6 | 1.85 | |
| MCS-4F | 4.5 | Ø3.2 | 1.6 | 1.85 | |
| MCS-05 | 5.0 | Ø3.2 | 1.0 | 1.85 | |
| MCS-5A | 5.5 | Ø3.2 | 1.0 | 1.85 | |
| MCS-5C | 5.0 | Ø3.2 | 1.6 | 1.85 | 2000 |
| MCS-5F | 5.5 | Ø3.2 | 1.6 | 1.85 | |
| MCS-06 | 6.0 | Ø3.2 | 1.0 | 1.85 | |
| MCS-6A | 6.5 | Ø3.2 | 1.0 | 1.85 | |
| MCS-6C | 6.0 | Ø3.2 | 1.6 | 1.85 | |
| MCS-6F | 6.5 | Ø3.2 | 1.6 | 1.85 | |
| MCS-08 | 8.0 | Ø3.2 | 1.0 | 1.85 | |
| MCS-8C | 8.0 | Ø3.2 | 1.6 | 1.85 | |
| MCS-10A | 10.5 | Ø3.2 | 1.6 | 2.1 | |
| MCS-18 | 18.2 | Ø3.0 | 1.0 | 1.5 | |
| MCS-22 | 22.0 | Ø3.2 | 1.6 | 2.0 |
