Components & Accessories
SPACER SUPPORT MCX-4A

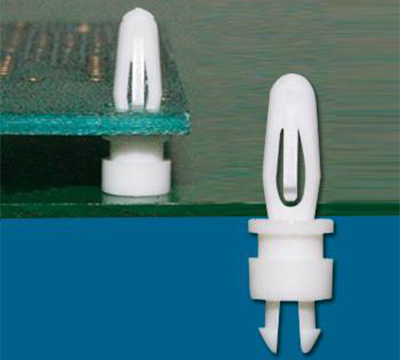

- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Chassis mounted end slides in.
- Easily removed for repairing or changing.

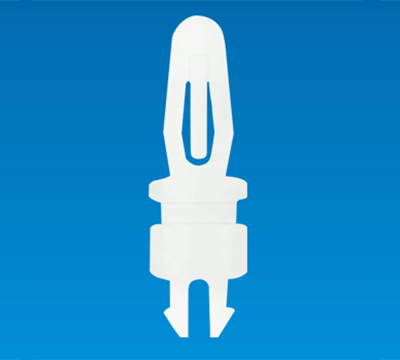

SPACER SUPPORT MCX-4A
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCBs.
- Provides distance,space and support between Circuit boards.
- Chassis mounted end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

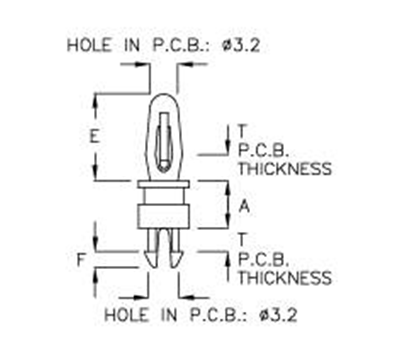

| PART NO | A | T P.C.B THICKNESS |
E | F | PACKAGE |
|---|---|---|---|---|---|
| MCX-4A | 4.8 | 1.4~1.6 | 8.7 | 1.6 | 2000 |
| MCX-4GR | 4.0 | 1.4~1.6 | 8.7 | 1.6 | 2000 |
