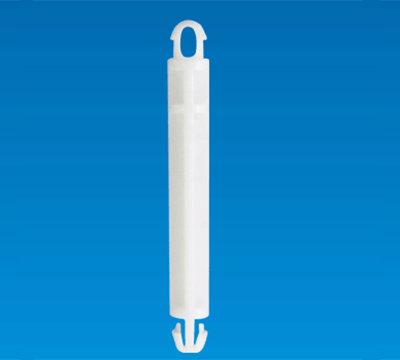

SPACER SUPPORT MCY-25

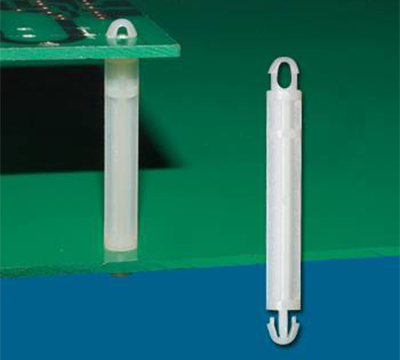

- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mounted end slides in<.
- Easily removed for repairing or changing.
SPACER SUPPORT MCY-25
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mounted end slides in<.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

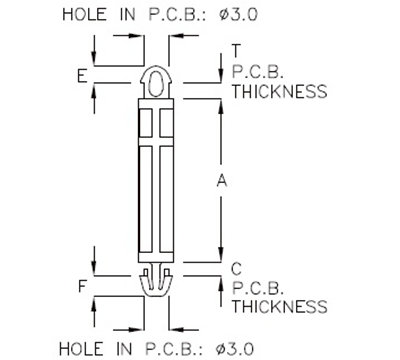

| PART NO | A | T P.C.B THICKNESS |
C P.C.B THICKNESS |
E | F | PACKAGE |
|---|---|---|---|---|---|---|
| MCY-25 | 25.0 | 1.4~1.6 | 1.0~1.2 | 2.0 | 2.4 | 500 |
| MCY-26A | 26.8 | 1.4~1.6 | 1.0~1.2 | 2.0 | 2.4 | 500 |
