Components & Accessories
SPACER SUPPORT MHT-05

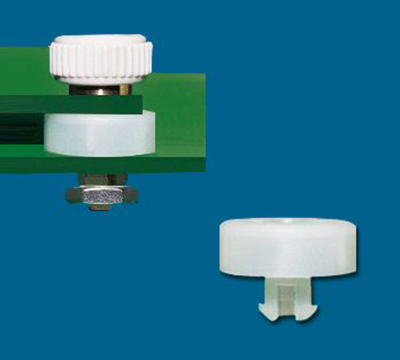

- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- M3 Screw Mount design, offer extremely strength to fix circuit board on chassis.

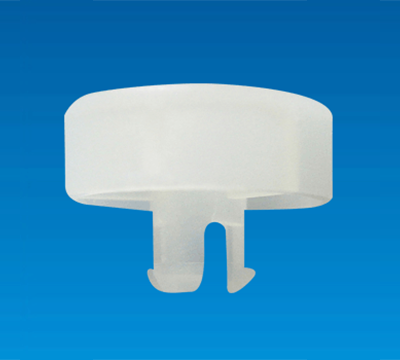

SPACER SUPPORT MHT-05
FEATURES
SPECIFICATION
FEATURES
- Joint Circuit board with Chassis.
- Provides distance, space and support between Circuit board and chassis.
- M3 Screw Mount design, offer extremely strength to fix circuit board on chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- SCREW: M3

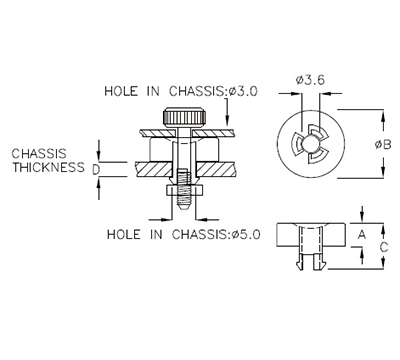

| PART NO | A | B | C | D CHASSIC THICKNESS |
PACKAGE |
|---|---|---|---|---|---|
| MHT-05 | 5.0 | 14.0 | 10.2 | 3.2~3.4 | 1000 |
| MHT-5A | 5.0 | 14.0 | 9.6 | 2.8~3.0 | 1000 |
