Components & Accessories

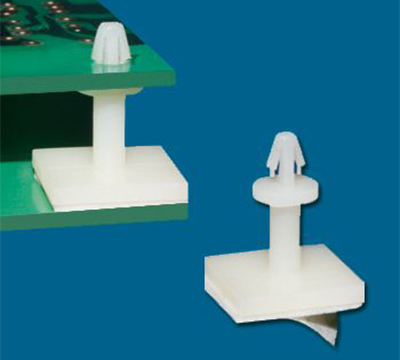

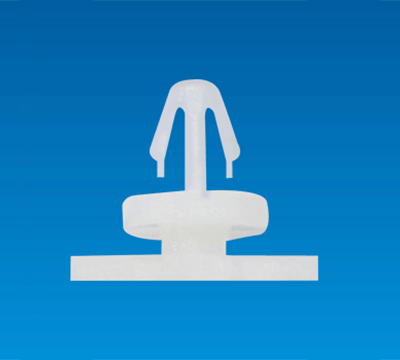

SPACER SUPPORT MSB-6A
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Adhesive back design, no need for a mounting hole on the chassis.
SPACER SUPPORT MSB-6A
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis.
- Provides distance, space and support between Circuit boards.
- Adhesive back design, no need for a mounting hole on the chassis.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- ADHESIVE TAPE: 3M

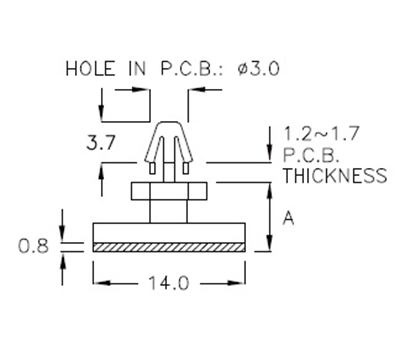

| PART NO | A | ADHESIVE AREA |
PACKAGE |
|---|---|---|---|
| MSB-6A | 6.3 | 14.0x14.0 | 500 |
| MSB-11A | 6.3 | 14.0x14.0 | 500 |
