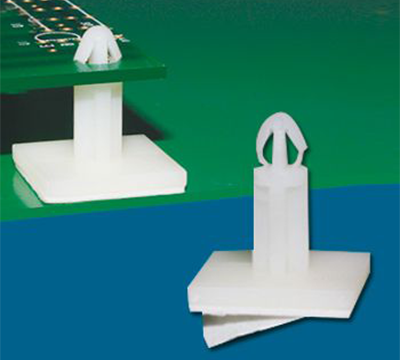

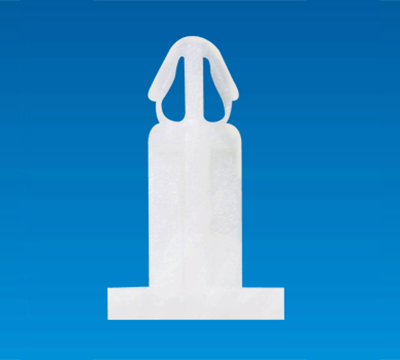

SPACER SUPPORT MSD-15
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mounted end slides in.
- Easily removed for repairing or changing.
SPACER SUPPORT MSD-15
FEATURES
SPECIFICATION
FEATURES
- Snap fit to joint PCB with chassis.
- Provides distance and space between Circuit board and chassis.
- Chassis mounted end slides in.
- Easily removed for repairing or changing.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- ADHESIVE TAPE: 3M

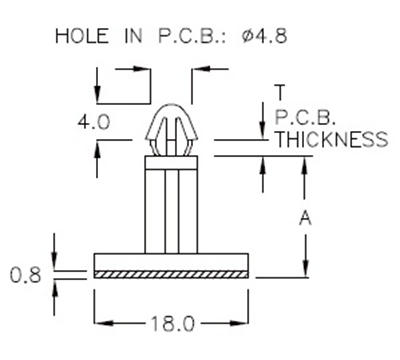

| PART NO | A | ADHESIVE AREA |
T P.C.B THICKNESS |
PACKAGE |
|---|---|---|---|---|
| MSD-15 | 14.2 | 1.2~1.6 | 1.2~1.6 | 500 |
